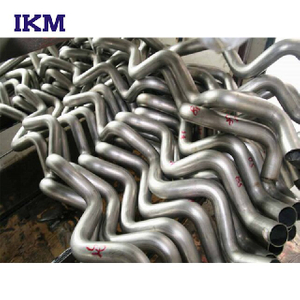

180degree Successive Multi-bend Pipe Processing
180degree successive multi-bend pipe processing has special tap both tube end and it has a certain technical difficulty. King-Mazon Company with independent scientific and technological innovation of metal conduit plastic forming technology, with Zhejiang University, Nanjing University of Aeronautics and Astronautics, Northwestern Polytechnical University, Zhejiang University, Lishui University, etc., to carry out scientific and technological research. Supported by King-Mazon Postdoctoral research Station and Zhejiang Province Key Laboratory of Aerospace Metal Tube Forming Technology and Equipment and other scientific research platforms, today has become one of the world's metal conduit bending, extrusion, expansion and other forming technology leaders. Our pipe/pipe fittings use advanced computer control system to control the action of the machine, effectively improve the quality and production efficiency of engineering pipe fittings processing, save production costs, and seek benefits for users. Welcome your consultation and communication. Thank you!
As a premier manufacturer and supplier of advanced metal conduit solutions, we present our highly specialized 180-degree successive multi-bend pipe processing. Engineered for high-demand industrial and engineering applications, this service delivers unparalleled structural precision and fluid dynamics.
Utilizes an advanced computer control system for flawless, repeatable execution.
Features a special tap both tube end for secure, high-torque integration.
Optimized for complex 3D geometric configurations without redundant welding.
Significantly reduces production costs while elevating overall engineering quality.
Achieving flawless fluid dynamics and structural integrity in complex piping networks requires far more than standard fabrication techniques. Our 180degree successive multi-bend pipe processing is engineered to transform raw metal conduits into highly precise, continuous geometric forms without the need for excessive welding, cutting, or jointing. When handling the finished components, one immediately notices the exceptionally smooth, wrinkle-free inner and outer radii, a direct testament to our proprietary metal conduit plastic forming technology. The tactile finish speaks of rigorous quality control, ensuring that high-pressure fluids, critical wiring, or volatile gases can pass through the system with zero obstruction, turbulence, or friction noise.
By leveraging an advanced computer control system, the machinery dictates every exact movement, eliminating human error and ensuring absolute repeatability across large-scale production runs. This sophisticated processing method specifically includes a special tap both tube end, presenting a certain technical difficulty that our engineering team has completely mastered. The result is a seamless, highly durable pipe fitting that effectively improves the quality and production efficiency of engineering pipe fittings processing. By streamlining the assembly phase and enhancing the lifespan of the conduit, we successfully save production costs and actively seek benefits for users across the most demanding global industries.
To ensure total transparency and assist your engineering teams in calculating load capacities and spatial routing, we have detailed the exact parameters of our forming capabilities below. Our specifications reflect a deep commitment to precision, accommodating a vast spectrum of dimensions and metallurgical profiles required for heavy-duty and high-stress environments.
Specification Category | Technical Details & Parameters |
|---|---|
Processing Type | 180degree Successive Multi-bend Pipe Processing |
Control System | Advanced computer control system |
Maximum Bending Angle | 180 Degrees |
Tube End Treatment | Special tap both tube end |
Core Forming Technology | Metal conduit plastic forming technology |
Applicable Materials | Stainless Steel (SS), Carbon Steel, Alloy Steel, Aluminum, Titanium Alloy |
Outer Diameter (OD) Range | φ4mm - φ325mm |
Wall Thickness (WT) Range | 0.2mm - 100mm |
Industry Standards | Aviation, aerospace, engines, equipment, nuclear energy |
Corporate Innovator | King-Mazon Company |
R&D Support Platforms | King-Mazon Postdoctoral research Station, Zhejiang Province Key Laboratory of Aerospace Metal Tube Forming Technology and Equipment |
Technical Cooperation | Zhejiang University, Nanjing University of Aeronautics and Astronautics, Northwestern Polytechnical University, Lishui University |
The engineering excellence behind our multi-bend processing lies in its unique ability to solve intricate design challenges while maintaining maximum structural robustness. We focus intensely on delivering components that streamline your assembly lines, reduce points of failure, and enhance the operational lifespan of your final machinery.
Continuous Flow Architecture: By achieving successive 180-degree bends without cutting or welding, structural weak points are entirely eliminated, ensuring maximum burst pressure resistance and superior fatigue life.
Specialized End Integration: The special tap both tube end ensures an airtight, high-torque connection right out of the box, completely removing the need for secondary threading or machining steps on your assembly floor.
Intelligent Automation: The advanced computer control system precisely manages the feeding, rotating, and bending axes, ensuring that every single piece mirrors the exact digital prototype with absolute micrometer accuracy.
Cost-Efficient Scaling: Effectively improves the quality and production efficiency of engineering pipe fittings processing, which translates directly to faster lead times, reduced material waste, and optimized procurement budgets.
To fully understand the capabilities of our manufacturing processes, it is essential to explore the specific technical dimensions that set our metal forming apart. Each aspect of our production cycle has been meticulously refined through years of academic research and rigorous industrial application, ensuring that we meet the highest standards of structural integrity and dimensional accuracy.
Achieving complex routing in confined mechanical spaces demands superior fabrication techniques. Our processing technology utilizes an advanced CNC computer control system seamlessly integrated with our proprietary metal conduit plastic forming technology. This sophisticated synergy supports highly difficult 180-degree successive multi-bending operations without compromising the structural integrity of the base material. By solving the forming challenges associated with complex 3D geometric shapes in a single continuous process, we eliminate the vulnerabilities typically introduced by traditional fabrication methods.
Reduces the reliance on multiple welded joints, significantly minimizing potential leak paths and points of corrosion.
Enhances the overall structural strength and fatigue resistance of the piping system under dynamic and vibrational loads.
Ensures absolute repeatability, allowing every single component to match the exact digital engineering model flawlessly.
Streamlines the transition from raw material to finished component in one uninterrupted, highly automated cycle.
Precision is the foundational requirement for high-performance piping networks, especially those handling volatile or high-pressure fluids. Through exact computer control and meticulous mold coordination, our manufacturing protocol strictly manages critical variables such as material springback, cross-sectional ovality, and wall thinning rates during the extreme stress of a 180-degree bend. When inspecting the finished conduit, the tactile smoothness of the inner wall confirms the absence of any flow-restricting imperfections.
Guarantees an impeccably smooth inner radius, preventing fluid turbulence, cavitation, and unexpected pressure drops.
Maintains strict dimensional tolerances, ensuring zero wrinkles, micro-cracks, or structural collapses along the bend extrados.
Perfectly meets the stringent requirements for high-pressure fluid transmission in critical and hazardous systems.
Facilitates seamless precision assembly, reducing installation friction and alignment issues on the production floor.
Industrial applications demand immense versatility in metallurgical properties. Our advanced forming technology is engineered to provide wide-ranging material and specification compatibility, adapting effortlessly from lightweight aerospace frames to heavy-duty nuclear pipelines. Whether the project requires the corrosion resistance of stainless steel or the extreme strength-to-weight ratio of titanium, our systems calibrate the bending force accordingly. We provide perfect bending solutions based on specific outer diameters (OD), wall thicknesses (WT), and tight centerline radii (CLR).
Extensively compatible with carbon steel, stainless steel (SS), aluminum, copper, and specialized titanium alloys.
Capable of processing delicate thin-walled tubes without buckling, wrinkling, or tearing the metal grain.
Easily handles thick-walled conduits requiring immense, controlled mechanical force for proper deformation.
Customizable parameters accommodating ODs from a micro φ4mm up to massive φ325mm industrial pipes.
The physical execution of extreme bending angles relies heavily on the caliber of the physical tooling. Relying on world-leading tube extrusion, expansion, and bending equipment, our facility is outfitted with a highly specialized tooling configuration. This includes custom-machined flexible mandrels, precision-ground wiper dies, and robust clamping systems that work in perfect harmony. This mechanical synergy is crucial for maintaining the tube's cylindrical profile when subjected to the immense stress of tight-radius curves.
Effectively prevents localized deformation, flattening, or wrinkling even at extremely small centerline radii (such as 1D or 2D).
Utilizes advanced wiper dies to support the inner radius, ensuring a flawless cosmetic and structural finish.
Employs articulated mandrels that adapt to the 180-degree successive multi-bend without jamming or scratching the interior.
Features rapid-change tooling setups to accommodate different pipe dimensions with minimal machine downtime.
In large-scale engineering operations, time is a critical metric. The strategic combination of automated continuous bending with the special tap both tube end drastically shortens the overall production cycle. By consolidating what would traditionally be multiple distinct machining stations into a single, fluid operation, we significantly elevate the throughput of engineering pipe fittings processing. This holistic approach to manufacturing not only accelerates delivery schedules but also fundamentally restructures the cost breakdown of large volume orders.
Substantially reduces the need for manual intervention, mitigating the risk of human error and associated labor costs.
Lowers material scrap rates by utilizing highly accurate predictive bending algorithms within the control system.
Eliminates redundant splicing, welding, and subsequent non-destructive testing (NDT) procedures.
Directly saves production costs and actively seeks long-term financial and operational benefits for users.
No two engineering challenges are exactly alike, which is why our processing framework is built around highly flexible customization capabilities. The precision and durability achieved through our 180-degree multi-bend techniques perfectly align with the rigorous, uncompromising standards of top-tier global industries. From the intense thermal cycling of an engine bay to the extreme pressures of deep-sea extraction, our tailored metal conduits deliver unwavering reliability where failure is simply not an option.
Automotive Manufacturing: Ideal for complex exhaust system routing and high-strength, lightweight seating frameworks.
Aviation & Aerospace: Meets the exacting tolerances required for critical hydraulic fluid lines and fuel delivery networks.
Oil & Gas Exploration: Provides robust, leak-proof conduits capable of withstanding harsh, highly corrosive environments.
HVAC & Heavy Machinery: Delivers optimized flow dynamics for industrial heating, ventilation, and heavy-duty hydraulic actuation systems.
True manufacturing excellence is born from relentless scientific inquiry. Our capabilities are deeply rooted in independent scientific and technological innovation, backed by formidable academic and institutional partnerships. Supported by the King-Mazon Postdoctoral research Station and the Zhejiang Province Key Laboratory of Aerospace Metal Tube Forming Technology and Equipment, we stand at the forefront of global metallurgical processing. We provide comprehensive, world-class technical support spanning from initial engineering feasibility assessments to full-scale mass production.
Collaborates extensively with Zhejiang University and the Nanjing University of Aeronautics and Astronautics for advanced material behavioral studies.
Partners with Northwestern Polytechnical University and Lishui University to continuously push the boundaries of metal conduit plastic forming technology.
Offers deep-dive engineering support, including precise parameter calculation and finite element analysis (FEA) prior to physical bending.
Recognized today as one of the world's premier leaders in metal conduit bending, extrusion, and expansion technologies.
Selecting a manufacturing partner for critical piping infrastructure requires absolute confidence in their technical pedigree and operational consistency. We do not merely process metal; we engineer comprehensive fluid and structural pathways that drive your operational success. Our entire methodology is built around an advanced computer control system designed to effectively improve the quality and production efficiency of engineering pipe fittings processing. By integrating cutting-edge research with heavy-duty industrial application, we deliver a competitive advantage that is both measurable and enduring.
Unmatched Academic Backing: Directly supported by the King-Mazon Postdoctoral research Station and elite provincial laboratories dedicated to aerospace metal forming.
Proven Global Leadership: Recognized globally as a pioneer in metal conduit bending, extrusion, and expansion forming technologies driven by the King-Mazon Company.
End-to-End Reliability: From the initial digital blueprint to the final special tap both tube end, our automated systems guarantee micrometer consistency across all batches.
Client-Centric Value Engineering: We actively seek benefits for users, optimizing every phase of the manufacturing cycle to save production costs without sacrificing structural integrity.
To assist your engineering, quality assurance, and procurement teams in making highly informed technical decisions, we have compiled detailed answers to the most rigorous inquiries regarding our successive multi-bend processing capabilities.
How does the advanced computer control system manage springback during a 180-degree successive bend?
The system utilizes sophisticated predictive algorithms based on the specific material's yield strength and the selected wall thickness (WT). It automatically over-bends the conduit by a precisely calculated microscopic margin, ensuring the final resting angle is exactly 180 degrees while maintaining optimal cross-sectional ovality.
What makes the "special tap both tube end" technically difficult, and how is it resolved?
Tapping a tube that has undergone multiple severe bends is challenging due to the potential spatial distortion of the tube's terminal axis. We utilize specialized clamping dies and synchronized CNC machining post-bending to ensure the threads are perfectly concentric, providing a flawless, high-torque seal for high-pressure fittings.
Can this metal conduit plastic forming technology handle aerospace-grade titanium alloys?
Absolutely. Supported by our scientific research with institutions like the Nanjing University of Aeronautics and Astronautics, our tooling configuration—including specialized mandrels and wiper dies—is specifically optimized to prevent galling, thinning, and micro-cracking when bending high-strength titanium alloys used in aviation.
What is the maximum outer diameter (OD) and wall thickness (WT) your equipment can process?
Our comprehensive equipment lineup can handle a vast range of dimensions. Based on our technical specifications, we process micro-tubing starting at φ4mm with a 0.2mm WT, all the way up to heavy-duty industrial pipes with an OD of φ325mm and a massive WT of 100mm, ensuring unparalleled versatility.
How does this process effectively save production costs for large-scale engineering projects?
By achieving complex 3D geometries in a single, continuous automated cycle, we eliminate the need for cutting, deburring, welding, and subsequent non-destructive testing (NDT) of joints. This drastic reduction in manual labor and secondary processing times directly lowers the overall manufacturing cost per unit while boosting output speed.
