Bending tubing is a fundamental process in many industries—from automotive fabrication to HVAC installation and custom metalwork. The tool at the heart of this process is the bender, more specifically the pipe bender. But using a pipe bender isn't simply a matter of brute force. It requires a blend of precision, understanding of materials, correct tool usage, and careful preparation. Whether you're bending stainless steel tubing for hydraulic systems or aluminum pipes for structural frames, mastering the bending process helps prevent costly mistakes like kinks, wrinkling, or cracking.
This article serves as a deep-dive tutorial on how to bend tubing with a pipe bender, tailored for professionals and DIY enthusiasts alike. We'll explore essential steps, frequently asked questions, and best practices. By the end, you'll have a clear roadmap to perform clean, accurate bends that meet industry standards.

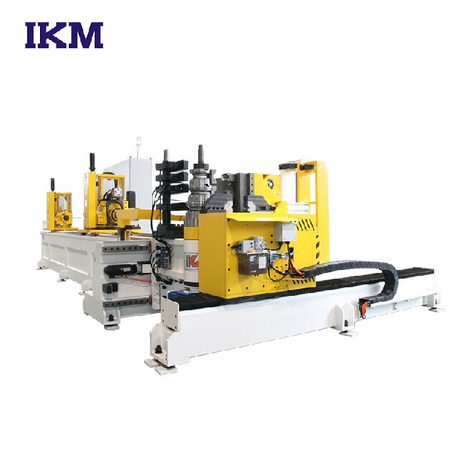

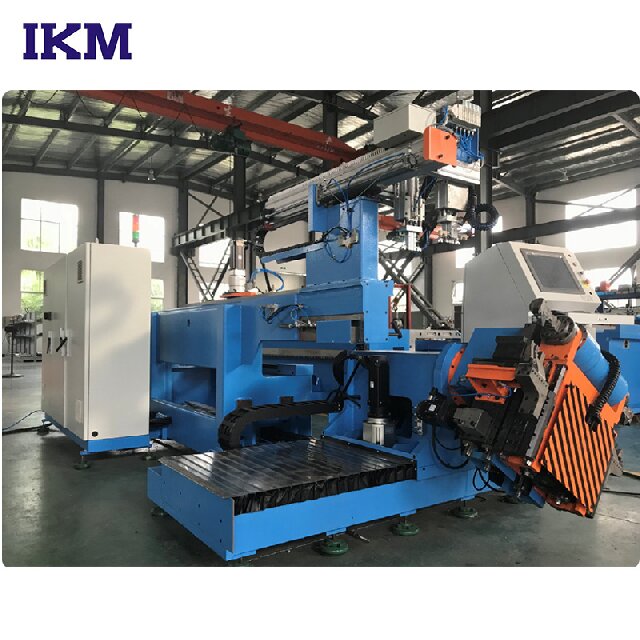

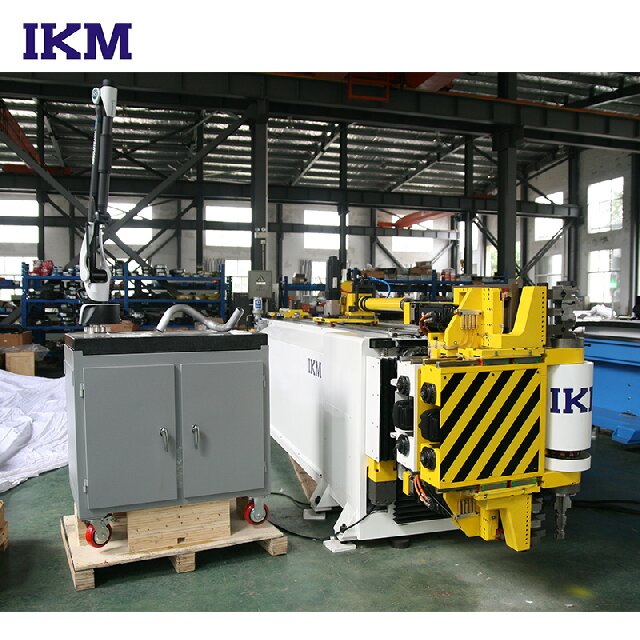

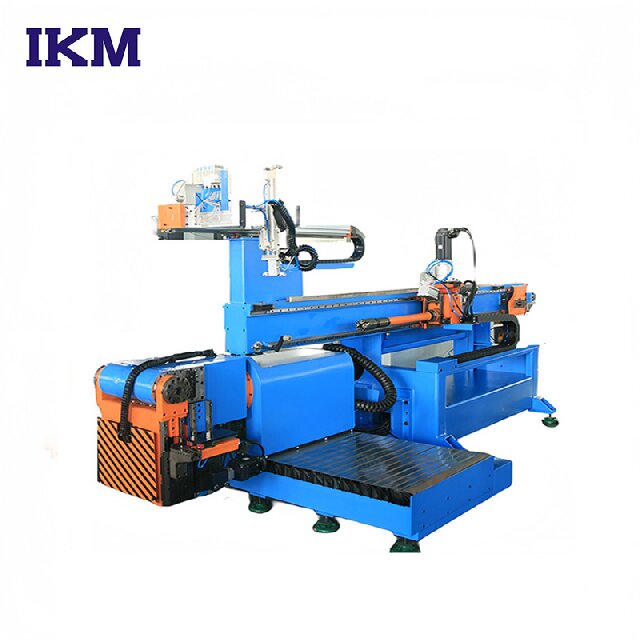

A pipe bender is a mechanical tool used to change the curvature of metal pipes and tubing without compromising their structural integrity. It functions by clamping the tube and then applying force to create an arc or angle. Pipe benders come in various types—manual, hydraulic, and electric—but this article focuses on manual pipe benders, which are commonly used in fieldwork and fabrication shops.
Why is this important? Poor bending techniques can cause deformation, weakening, or even complete failure in the system where the tubing is applied. That's why using a dedicated bender—as opposed to makeshift tools—is essential. The bender provides controlled force and the right die profile to support the material during the bend.

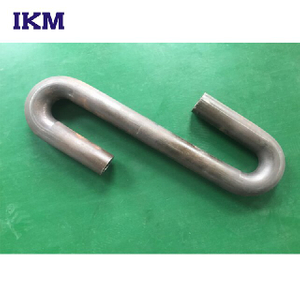

Not all tubing materials react the same way under pressure. Softer metals like copper or aluminum bend easily but are prone to flattening. Harder materials like stainless steel resist deformation but require more force. The outer diameter (OD) and wall thickness of the tubing also play a critical role. Select a bender die that precisely matches the OD of your tubing for an optimal bend radius.
Table: Common Tubing Materials and Recommended Bending Radii
| Material | Min. Bend Radius (in OD) | Notes |
|---|---|---|
| Copper | 3x OD | Avoid kinking with tight bends |
| Aluminum | 2.5x OD | Easy to deform, use mandrel if needed |
| Stainless Steel | 4x OD | Requires more force, go slow |
| Carbon Steel | 3x OD | Versatile, but sharp bends crack |
Use a permanent marker and a tape measure to mark the centerline of where you want the bend. Remember, tubing shortens slightly during bending. It’s critical to account for the bend deduction—the reduction in length caused by the curve. Many benders come with charts or built-in scales to assist with these calculations.
Pro tip: Mark both the start and end points of the bend. You can also use a protractor or angle finder if you’re working with compound angles or multiple bends on the same piece.
Place the tubing in the bender so that the centerline mark aligns with the appropriate index line on the bender die. Make sure the tube is seated fully in the groove of the die to avoid slippage or distortion. If your bender has a locking mechanism or clamp arm, engage it securely before bending.
Take note of the orientation. Any twisting or misalignment at this stage can ruin the bend or cause a poor fit in assemblies. If you’re making multiple bends, it's vital to keep a reference angle or layout guide.
Start bending slowly, applying even pressure throughout the motion. If you’re using a manual ratcheting pipe bender, apply force in a controlled, consistent rhythm. Avoid jerking or sudden stops, which can lead to stress fractures in the material.
Watch the angle indicator on the bender, if available. Stop just before the desired angle (usually about 2–3° shy), as metal has a tendency to spring back once the pressure is released. For example, if you want a 90° bend, stop at 87° and verify after releasing.
Check the bend frequently to ensure the tubing is maintaining its round shape. Some users add a mandrel or internal support for thinner-walled tubing, but for most manual operations, this isn’t necessary.
Even seasoned professionals occasionally make errors when bending tubing. Here are a few pitfalls and how to prevent them:
Kinking – Often occurs when bending thin-walled tubing without the correct die or internal support. Use a bender with the correct radius and avoid bending below the minimum bend radius.
Ovalization – The round tube becomes an oval. This is typically due to excessive pressure or an improperly seated die.
Inaccurate angles – Caused by incorrect alignment or failing to account for spring-back. Use test bends on scrap pieces to refine your technique.
Twisted bends – Happens when the tubing rotates during the bend. Secure the tube and use alignment marks to maintain orientation.
Most pipe benders are designed for round tubing. Using them on square tubing can cause damage or deformation. For square tubing, use a dedicated square-tube bender or press brake.
Use a bend allowance formula:
Bend Allowance (BA) = A × π/180 × (R + K × T)
Where:
A = Bend angle in degrees
R = Inside bend radius
T = Material thickness
K = K-factor (typically 0.3–0.5)
Consulting a bending chart or using CAD software helps minimize errors for complex layouts.
Spring-back is the slight return of the tube to its original shape after bending. To minimize this, slightly over-bend the tube, especially when working with harder metals like steel or titanium.
Successfully bending tubing with a pipe bender is as much an art as it is a mechanical process. Precision, patience, and planning are essential. By understanding the behavior of different materials, choosing the right die, and meticulously marking and aligning your bends, you can produce high-quality results every time.
