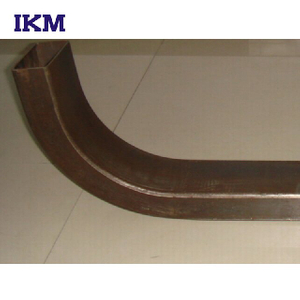

Square tubing is a widely used structural material in various industries such as construction, automotive, furniture manufacturing, and metal fabrication. Unlike round tubing, square tubing provides increased rigidity and uniform strength on all sides, making it ideal for applications that require both durability and aesthetics. Bending square tubing, especially 1-inch square tubing, is a nuanced process that requires precision, the right tools, and a fundamental understanding of metal behavior.

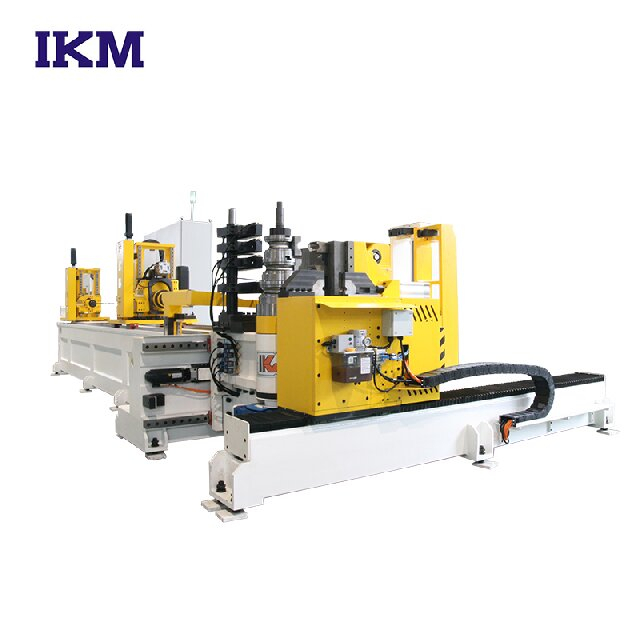

A bender is a tool or machine designed to manipulate the shape of tubing without causing significant deformation or structural compromise. When dealing with 1-inch square tubing, the most common materials are mild steel, aluminum, and stainless steel—each responding differently to force and bending due to their material properties. The challenge with square tubing lies in maintaining the shape of the cross-section during bending. Improper technique or equipment can cause the tubing to wrinkle, crush, or kink.
To bend 1 square tubing accurately, you must consider factors like the wall thickness, the radius of the bend, material elongation, and spring-back. Choosing the right method and equipment ensures structural integrity and an aesthetically pleasing outcome.
Before you begin the bending process, gather all necessary tools to ensure a smooth and precise operation. The following equipment is typically required:
| Tool | Description | Purpose |
|---|---|---|
| Manual or Hydraulic Bender | A mechanical or hydraulic press used to bend tubing | Delivers controlled force for accurate bends |
| Square Die Set | Custom dies that match square tubing dimensions | Prevents deformation and kinks |
| Tubing Clamp | Holds tubing in place during bending | Ensures uniformity and prevents slippage |
| Angle Gauge | Measures the angle of the bend | Provides accurate bending results |
| Marker & Measuring Tape | Used to mark the bend locations | Guarantees precision and symmetry |

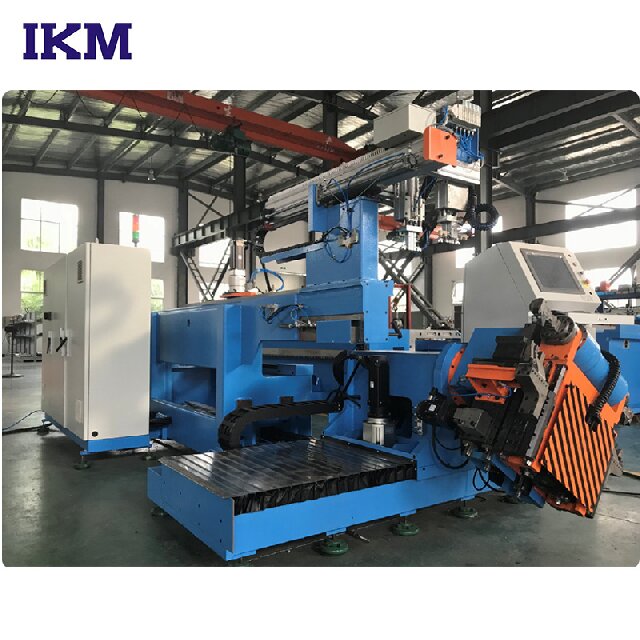

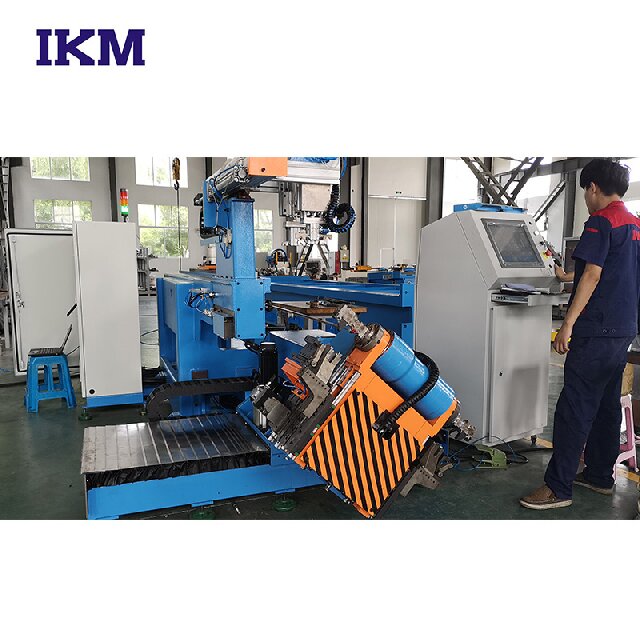

A manual bender is suitable for lighter gauge square tubing, while hydraulic benders are recommended for thicker walls and harder metals. Additionally, selecting the right die radius is critical—it should be at least 2-3 times the tubing width to prevent wall collapse.
Safety equipment like gloves, eye protection, and steel-toed boots is also essential, especially when using hydraulic equipment.
Accurate measurement is the cornerstone of a successful bend. Use a measuring tape to locate the precise point where the bend should begin. Mark it clearly using a permanent marker or scribe. If multiple bends are needed, double-check each marking against your project specifications.
Remember to account for the bend allowance—the stretch that occurs in the tubing during bending. Not considering this can result in dimensional errors, particularly in precise frameworks.
Place the tubing into the bender's die set, aligning your mark with the bending center of the die. For square tubing, support is crucial—both inside the tube (if using an internal mandrel) and outside (die set with guide rollers) to prevent crushing. Lock the tubing tightly with the clamp to prevent shifting.
Apply even pressure, ensuring the tubing is perfectly level. Misalignment can lead to angular distortion or torsion, making the tubing unusable for structural purposes.
Initiate the bending process by slowly applying force with the bender's handle or hydraulic lever. Maintain a consistent speed to avoid uneven bending. It’s better to slightly under-bend at first and then increase gradually. Monitor the angle using an angle gauge, and compare it against your design requirements.
As you bend, observe for signs of strain such as buckling, rippling, or cracking. If any occur, stop immediately and reassess your setup or reduce the force.
Once the desired bend angle is achieved, release the tubing slowly from the clamp. At this point, you'll likely observe a spring-back effect—where the tubing attempts to return to its original shape. To compensate, slightly over-bend the tubing by a few degrees during the actual bending process.
Afterward, inspect the bend closely. Look for any surface cracks, flattening, or warping. You can use a digital caliper to measure the wall thickness and cross-section at the bend to ensure there’s no severe thinning or ovalization.
If minor distortions occur, a heat gun or torch may be used carefully to adjust the bend, especially for aluminum tubing. However, excessive heat can compromise structural integrity and should be applied with caution.
Even experienced metalworkers can make errors during bending if proper precautions are not followed. Here are the most common mistakes and how to avoid them:
Incorrect Die Radius: Using a die with a radius too tight can lead to wall collapse. Always match the die to your tubing size.
No Mandrel Support: Bending without internal support can result in kinking or flattening of the tubing.
Overlooking Material Properties: Aluminum, steel, and stainless steel behave differently. Customize your pressure and bend angle accordingly.
Improper Clamp Placement: Insecure tubing can shift during bending, resulting in misaligned or twisted bends.
Ignoring Spring-back Compensation: Failing to over-bend leads to underperformance in angular accuracy.
Avoiding these pitfalls saves both time and materials, ensuring a professional result.
Yes, but it's not recommended for precision work. DIY methods like heat bending or hammering around a jig can result in inconsistent bends and structural deformation. For best results, always use a properly fitted bender.
A good rule of thumb is a minimum inside radius of 2 to 3 times the width of the tubing—so for 1-inch tubing, aim for a 2–3 inch radius. This prevents wall distortion and maintains tubing strength.
Filling tubing with fine dry sand can help maintain the tubing’s shape during bending by resisting compression. This is especially useful if you’re working without a mandrel or using a manual bender.
Use a larger bend radius, apply gradual force, and consider heating the tubing slightly (especially aluminum). For steel, ensure the material is not brittle or corroded.
Bending 1-inch square tubing is a technical yet rewarding process that requires the right combination of tools, technique, and patience. Utilizing a bender designed for square tubing, accounting for material properties, and avoiding common errors can lead to consistent and structurally sound bends. Whether you're working on a furniture frame, a roll cage, or a custom bracket, mastering this skill ensures your projects are both functional and professional-looking.
