Pipe fittings play an essential role in a variety of industries, from plumbing and construction to oil and gas. These fittings serve as critical components for joining, diverting, or controlling the flow of fluids or gases within pipe systems. The manufacturing of pipe fittings involves a precise and complex process, ensuring that the final product meets the stringent standards required for performance, durability, and safety.
The manufacturing process of pipe fittings includes various stages such as material selection, cutting, forming, joining, surface treatment, and quality control. These stages must be carried out with meticulous attention to detail to ensure that the fittings can withstand the demanding environments in which they are used, including high pressures, temperatures, and corrosive conditions.
The manufacturing of pipe fittings involves several crucial steps that ensure the final product meets industry standards. Below are the primary stages of the manufacturing process.
The process of manufacturing pipe fittings begins with the selection of the appropriate material. The material chosen depends on the intended application, the pressure rating, the corrosion resistance requirements, and cost factors. The most commonly used materials for pipe fittings include:
Carbon Steel: Ideal for applications where strength is required, such as in industrial systems and oil and gas pipelines.
Stainless Steel (SS): Known for its corrosion resistance, stainless steel is used in applications exposed to harsh environments, such as chemical processing and marine applications.
Brass: Typically used for plumbing systems, brass fittings are corrosion-resistant and offer good machinability.
PVC (Polyvinyl Chloride): PVC is used for low-pressure applications, such as irrigation systems, drainage, and HVAC systems.
Copper: Commonly used in plumbing and HVAC systems for its malleability and resistance to corrosion.
Once the appropriate material is selected, it is cut into the required shapes for further processing.
The first physical step in manufacturing pipe fittings is the cutting of raw material into manageable pieces. The cutting process is typically performed using cutting machines or sawing machines, depending on the type of material being used. For larger volumes, CNC cutting machines are employed for precision cuts.
After cutting, the material may undergo shaping. Shaping involves transforming the material into the desired form, which could include bending, molding, or casting. Shaping methods vary depending on the complexity of the fitting. For example, a simple elbow fitting may be bent, while a tee fitting may require casting or forging. Each shaping method is chosen based on the final geometry required.

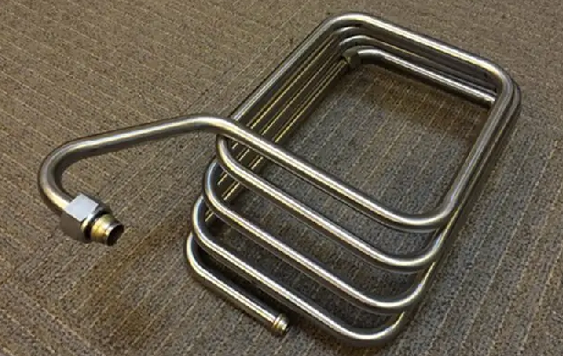

Pipe fittings such as elbows, tees, and reducers require bending to achieve the correct angles. The bending process is carefully controlled to ensure that the fitting does not become weakened or deformed. Various bending techniques are used depending on the size, material, and complexity of the fitting:
Manual Bending: For small volumes or simpler bends, manual bending techniques can be applied. This is commonly used for PVC and copper pipes.
Hydraulic Bending: Hydraulic systems use fluid pressure to bend pipes with precision. This is a common method for steel and stainless steel fittings, especially in high-pressure applications.
Rotary Bending: This method is used to create tight-radius bends by rotating the pipe around a die. Rotary bending ensures minimal distortion in the pipe and is used for applications requiring high precision and accuracy.
Forming, on the other hand, is used to shape the fitting into a more complex geometry. For example, tee fittings are typically formed by casting the material into a mold, while other fittings like couplings may be forged to shape.
After the pipe has been shaped or bent into the desired form, the next step in the process is joining the components. This is often accomplished through various welding methods, such as:
Butt Welding: This method involves joining two pipe ends by welding them together, creating a seamless connection.
Socket Welding: For pipe fittings like flanges, the pipe is inserted into a socket, and the connection is welded around the edge.
Threading: Some pipe fittings, such as couplings and plugs, require threaded connections. Threading is typically done using CNC lathes and ensures a tight, secure fit for screw-on fittings.
Welding is essential for ensuring that the pipe fittings maintain their structural integrity and leak-proof characteristics. The quality of the weld must be checked to ensure it meets industry standards and can withstand the required pressure.
After welding or joining, the pipe fittings undergo surface treatment to improve durability and aesthetic appeal. The main surface treatments include:
Galvanizing: This involves coating the pipe fitting with zinc to improve corrosion resistance. It is particularly useful for fittings used in outdoor or marine applications.
Polishing: Many stainless steel and brass fittings undergo a polishing process to improve their surface finish and appearance. Polishing also enhances corrosion resistance.
Powder Coating: Some pipe fittings may be coated with a powder coating to provide additional protection against corrosion and abrasion.
These surface treatments are critical for ensuring that the fittings are durable and long-lasting under the conditions to which they will be exposed.
The final step in the manufacturing process is quality control. Pipe fittings must undergo rigorous testing to ensure they meet the required standards for strength, durability, and performance. Common quality control tests include:
Pressure Testing: Fittings are tested to ensure they can withstand high-pressure environments without leaking or failing.
Dimensional Inspection: The fittings are measured against their specifications to ensure they meet the required dimensions.
Visual Inspection: A thorough inspection is conducted to identify any surface defects, such as cracks, pitting, or inconsistent welding.
Leak Testing: Certain fittings are subjected to leak testing to ensure they are airtight and watertight.
The goal of these tests is to ensure that each fitting can perform reliably under the specific conditions for which it was designed.
The manufacturing process of pipe fittings is an intricate series of steps, including material selection, cutting, shaping, bending, welding, surface treatment, and quality control. Each of these steps plays a critical role in ensuring that the final product meets the necessary performance standards for its intended application.
By using advanced machining techniques, quality materials, and rigorous testing, manufacturers can produce pipe fittings that are reliable, durable, and safe for use in a variety of industries, including plumbing, construction, oil and gas, aerospace, and chemical processing.
The ability to choose the right material and manufacturing method ensures that the finished pipe fittings will withstand the conditions they are exposed to, whether it's high pressure, temperature extremes, or exposure to corrosive substances. Ultimately, the success of a piping system depends on the quality of the pipe fittings used within it.
