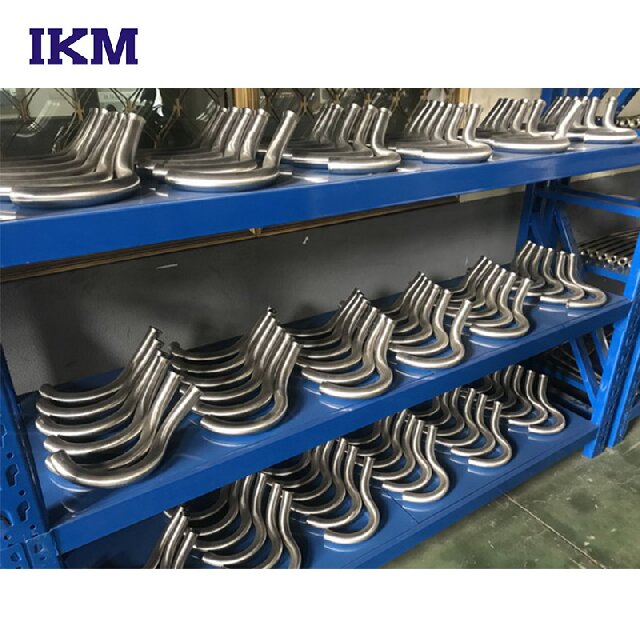

A piping network is only as reliable as its weakest joint. You might assume these components simply redirect fluid, but their actual engineering role is far more complex. Understanding how a pipe fitting works requires evaluating pressure ratings, material compatibility, and joint integrity. When you ignore these critical factors, you risk catastrophic leaks, system downtime, and severe compliance violations. In reality, pipe fittings function by actively manipulating fluid dynamics while maintaining strict mechanical seals under extreme thermal and physical stress. Selecting the proper configuration means perfectly matching the internal geometry and manufacturing standards to your specific application. This comprehensive guide breaks down the essential structural mechanics, connection methodologies, and standard compliance frameworks you need. We will help you evaluate, classify, and source commercial piping components to ensure absolute system reliability.
Pipe fittings control system flow by introducing calculated resistance, measured in engineering through "equivalent length" and pressure drop metrics.
The mechanics of a fitting depend strictly on system type: pressurized lines require high-strength seals, while gravity-fed (DWV) systems rely on long-sweep geometries to maintain flow.
Evaluating *Pipe Fitting Processing*—including thread angles, forging methods, and metallurgical bonding—is critical for meeting stringent ASME safety codes.
Mixing dissimilar materials without proper transition fittings causes galvanic corrosion and inevitable joint failure.
Every fitting in a network alters flow velocity. Engineers evaluate pipe fittings based on a metric called "equivalent length." This calculation measures the localized pressure drop caused by a specific geometry. A 90-degree elbow creates measurable resistance against the fluid. You must calculate this drop accurately. This ensures you size the system pump or compressor correctly.
Piping systems expand and contract continuously during operation. Fittings must absorb this dynamic movement safely. Implementation reality shows stark differences between specific designs. A four-way cross fitting distributes stress very poorly. It acts exactly like a rigid four-legged stool under thermal expansion. Consequently, engineers strictly evaluate crosses during the design phase. They typically reserve them for temperature-stable environments like fire sprinkler systems. You rarely see crosses deployed in highly dynamic fluid supply lines.
The core working mechanism relies entirely on uniform wall thickness. Manufacturers must maintain extremely precise internal tolerances. These tight dimensional tolerances prevent destructive cavitation. They also stop internal erosion directly at the connection joint. If the inner wall features microscopic defects, turbulent flow will eventually erode the metal. This leads directly to pinhole leaks.
Fitting Type | Flow Characteristics | Typical Equivalent Length (Feet of Straight Pipe) |
|---|---|---|
90-Degree Standard Elbow | Sharp directional change; high turbulence. | 2.5 - 3.0 |
45-Degree Standard Elbow | Gradual directional change; moderate resistance. | 1.2 - 1.5 |
Standard Tee (Flow through Branch) | Splits flow abruptly; very high resistance. | 5.0 - 6.0 |
Standard Tee (Flow through Run) | Maintains primary flow direction; low resistance. | 1.0 - 1.5 |
Engineers classify piping components based entirely on the operational environment. You cannot interchange parts between different system types.
Pressurized supply systems manage water, gas, and hydraulic fluids. They function by maintaining absolute airtight or watertight seals. They must resist constant internal outward force continuously. You need highly robust components for these networks. We deploy specific configurations to handle these forces:
Unions: We install these to allow non-destructive maintenance access.
Reducers: They funnel high-pressure flow smoothly between different pipe diameters.
High-Pressure Elbows: Manufacturers forge these with extra wall thickness to withstand sharp directional forces.
Drain, Waste, and Vent (DWV) systems operate completely differently. These networks function entirely on gravity and atmospheric pressure. Internal smoothness becomes the paramount evaluation criterion. They utilize very specific geometries to operate safely and effectively. Sanitary tees, wyes, and long-sweep elbows are standard choices here. These elongated shapes prevent debris accumulation effectively. They maintain continuous, unobstructed downward flow. A standard 90-degree elbow would easily clog in a DWV application.
Transition components act as critical structural bridges. We use them strictly to connect different materials safely. They also adapt varying pipe diameters safely. A proper transition geometry never compromises overall system pressure. It provides a seamless internal pathway across boundaries.
Joint reliability originates during the initial manufacturing stage. We evaluate whether a part is cast, forged, or extruded. Precise Pipe Fitting Processing dictates the ultimate installation success. Machining accuracy defines the final structural integrity. If the factory cuts threads poorly, the joint will fail under pressure.
Threaded connections function via mechanical wedging. You must follow exact thread standards carefully. An NPT thread uses a 60° angle. A BSPT thread relies on a 55° angle. You cannot mix them safely. Installers apply specific sealants like PTFE tape or pipe dope. These compounds fill microscopic voids between the male and female threads. This physical barrier ensures an airtight seal.
Thermal and chemical bonding methods alter the material state directly. Solvent welding represents the standard for PVC and CPVC. The connection works by chemically melting both pieces. It fuses them into a single, seamless plastic unit. The original seam disappears completely.
High-pressure industrial environments demand metallurgical welding. Welders use butt-weld or socket-weld techniques. They fuse components using specialized filler metals under intense heat. This process creates a joint as strong as the line itself. These welds undergo strict x-ray inspections.
Mechanical compression and press-fit methods utilize localized physical deformation. An internal O-ring provides the primary watertight seal. Stainless steel grab rings physically lock onto the exterior. Pressed metal collars also secure the connection permanently. Installers use hydraulic tools to crimp the metal sleeve.
Structural mechanics only hold up if the material survives. It must withstand the transported fluid and the external operating environment. If you select the wrong alloy, the system will degrade rapidly.
Carbon steel offers high economical strength. However, it remains highly vulnerable to oxidation. We primarily use it in closed-loop systems. Stainless and nickel alloys handle extreme abuse. Engineers require Inconel for corrosive chemical processing. They are also mandatory for high-purity food and pharma lines. Advanced plastics like PEX provide high flexibility. They offer excellent freeze resistance. However, UV degradation and high-temperature limits constrain their usage.
Material Category | Primary Advantage | Critical Limitation |
|---|---|---|
Carbon Steel | High tensile strength and durability. | Susceptible to severe external rusting. |
Stainless Steel (316) | Exceptional chemical and corrosion resistance. | Requires highly specialized welding techniques. |
CPVC | Seamless chemical fusion and corrosion-proof. | Becomes brittle under extreme cold. |
PEX (Cross-linked Polyethylene) | Expands safely during freezing conditions. | Degrades rapidly under direct UV exposure. |
Connecting dissimilar metals creates severe physical risks. Joining copper directly to galvanized steel initiates an electrochemical reaction. This is known as galvanic corrosion. The less noble metal sacrifices itself and corrodes rapidly. This reaction inevitably degrades the entire connection.
You must specify dielectric unions to solve this issue. Manufacturers engineer these parts with internal elastomeric washers. They include thermoplastic sleeves around the connection bolts. These specialized parts physically and electrically isolate the incompatible metals. This stops the electrochemical circuit completely.
We must evaluate every piping component against operational compliance standards. Industrial applications rely on strict ASME code frameworks. You cannot install unverified parts in critical infrastructure.
ASME B31.1 governs high-pressure steam and power plants. This code requires highly conservative safety margins. Facilities mandate rigorous non-destructive testing for all components. ASME B31.3 governs chemical and refinery plants. It allows for slightly more flexible stress tolerances. However, it mandates extremely strict material inspection. It also requires absolute material traceability across the supply chain.
You must carefully evaluate installation realities and labor allocation. Push-to-connect or press connections drastically reduce highly skilled labor requirements. They offer a much faster alternative compared to traditional welding and threading. They change project timelines significantly. However, they require strict operational checks to verify O-ring integrity. You must adapt your installation protocols to match these modern realities.
Always require your vendors to provide Material Test Reports (MTRs). These critical documents verify specific alloy composition accurately. They ensure precise dimensional consistency across production batches. High-quality Pipe Fitting Processing always generates comprehensive batch records. If a manufacturer cannot produce an MTR, you must reject the part. Traceability prevents catastrophic failure in pressurized applications.
Selecting the right component is a rigorous engineering decision, not a simple commodity purchase.
Ensure your choices align precisely against system pressure drops and material compatibility requirements.
Verify all specified components meet precise ASME compliance standards before final installation.
Next Action: Audit your current piping schematics immediately to identify hidden pressure bottlenecks or galvanic corrosion risks.
Next Action: Consult a specialized manufacturer to match processing grades precisely to your operational environment.
A: Plumbing typically refers to residential and commercial water and waste systems. Pipefitting is a highly specialized industrial trade. It focuses on high-pressure, complex alloy piping systems used in refineries and power plants. Pipefitters follow rigorous welding, fabrication, and ASME compliance standards.
A: A Weldolet is a specific type of branch connection fitting. Installers weld it directly onto a main pipe to create an outlet. It provides critical structural reinforcement at the hole. This heavily mitigates stress concentrations caused by opening the main pipeline.
A: No. They feature completely different thread angles. NPT uses a 60° angle, while BSPT uses a 55° angle. They also feature different pitch configurations. Forcing them together results in severe cross-threading. You will strip the metal and guarantee spiral leaks under pressure. You must use a dedicated thread adapter.
